Packaging Equipment Sales has a full line of Skin Packaging Equipment including small economical table-top skin packaging equipment up to high speed conveyor skin packers. We have the best skin packaging equipment for your application. We are here to make selecting the right model skin packer fast and easy.

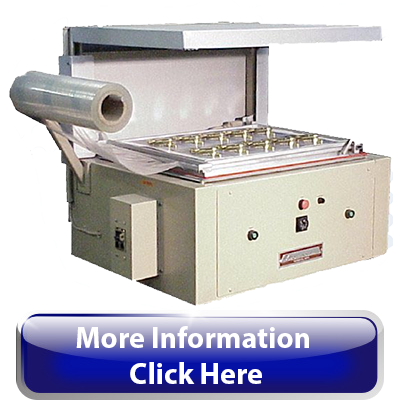

Table-Top Skin Packaging Equipment is a great way to produce high quality skin packages with a low initial investment. This is a low cost self-contained, single station, skin packaging system. This manual operation skin packer is designed for low volume applications. This machine is excellent for startup companies due to its low cost and ease of use. This table-top skin packaging machine is heavy duty and built to withstand daily production of skin packages for many years. This is not some cheaply made, imported unit. This is a 100% American made high quality skin packer.
Table-Top Skin Packaging Equipment Specifications:

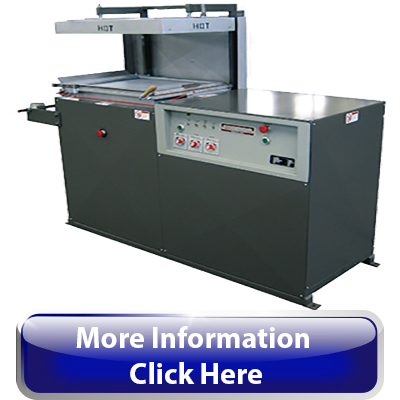

Semi-Automatic Skin Packaging Equipment with all the latest features to meet most skin packaging production requirements. This is an economically priced, free-standing skin packaging machine designed to meet most skin packaging production requirements. This skin packaging machine is the most reliable skin packaging machine in the business for professional use and long term reliability. This new skin packaging machine design incorporates an energy saving heating system with instant on/off heaters, which come up to proper temperature instantly during cycles and turn off for loading/unloading. The skin packaging machine features automatic cycle control for precision repeatability and is a heavy duty design, using the finest materials and components to insure years of dependable trouble-free operation. This is a completely self-contained machine, only requiring a single electrical connection for full operation.
Semi-Automatic Skin Packaging Equipment Specifications:
This video shows the basic principles of "How Skin Packaging Machines Work". Any of the below steps can be done either by an operator or automatically depending on the machine configuration. The operator places the master card onto the skin packaging machine bed, loads product and depresses the two hand start buttons to initiate the automatic skin cycle, the heater turns on over the film in the clamp frame, (an adjustable timer controls heat time) at the end of the heat time, the clamp frame descends and the automatic skin cycle takes place. Timer controlled vacuum is initiated, the heater remains on for a seal dwell - time and then turns off. The cool cycle takes place and the package is finished. The operator opens the clamp frame, moves the finished skin packed card out of the form area, the film is simultaneously reloaded in the clamp frame. After the frame is closed, the film is manually slit (or the optional automatic hot wire film cut-off separates the film. The skin packed board is now ready for fast and accurate trimming on a die cutter and the skin pack cycle can be activated.

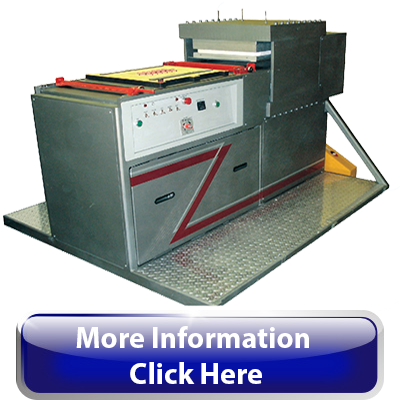

Skin Packaging Equipment with Trim Feature are semi-automatic, completely self-contained skin package sealers with a hydraulic die cutter built on a single, space-saving frame. These units are specifically designed for applications utilizing 18" x 24" master skin cards. The skin package sealer with trim feature provides work-motion efficiencies which deliver maximum productivity of high quality skin packaged items. The hydraulic die cutter alleviates all of the mechanical and maintenance problems associated with roller die cutters and greatly increases the life of steel rule dies, since even pressure is applied over the entire die. This reliable skin pack sealer design incorporates an energy efficient heating system with instant on/off heaters, which come up to heat instantly during cycles and turn off for loading/unloading. The Skin Package Sealer with Trim feature has an automatic cycle control for precision repeatability and is a heavy duty design, using the finest materials and components to insure years of dependable trouble-free operation. This is a completely self-contained machine, requiring connection to electrical supply only, for full operation.
Skin Packaging Equipment with Trim Feature Specifications:

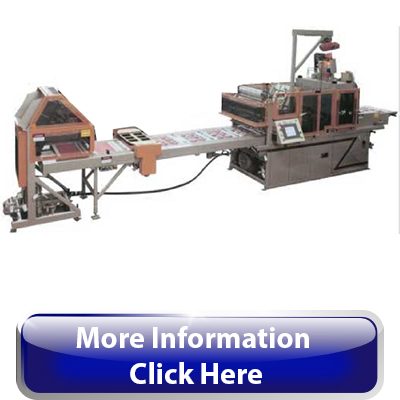

Automatic Skin Packaging Equipment are in-line skin packaging machines with built in hydraulic die cutting is specifically designed to bring affordable automation into skin packaging applications where manual machines were previously used. The automatic skin package machine is ideally suited for applications utilizing standard 18" x 24" master cards. There are 2 open stations for product loading, a skin package sealing station, a skin package die cutting station and finished skin package discharge station. This automatic skin package machine is available with numerous options for increased productivity as well as providing the flexibility to meet any automatic skin packaging application (computer control systems with job memory, additional product loading stations, parts which protrude through the card, magnetic board infeed for ferrous metal parts which have a tendency to shift, blister forming cycle, etc.). The automatic skin package machine features automatic cycle control for precision repeatability and is a heavy duty design, using the finest materials and components to insure years of dependable trouble-free operation. This is a completely self-contained machine only requiring a connection to electrical supply for full operation.
Automatic Skin Packaging Equipment Specifications:

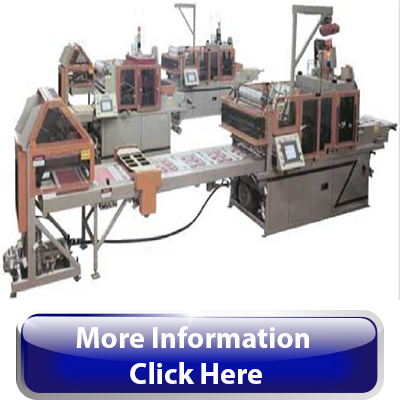

High-Speed Skin Packaging Equipment are advanced, inline skin packaging systems, incorporating the latest in machine design and control systems and featuring all imaginable technical innovations. The high-speed automatic skin packaging system is manufactured on an extra heavy-duty construction framework utilizing the finest materials and components to insure years of trouble-free operation and maximum productivity. These machines have cycle times of up to 12 per minute.
High-Speed Skin Packaging Equipment Features:
High-Speed Skin Packaging Equipment Specifications:
|Table-Top||Free Standing||Free Std. with Trim|
If your project requires entry level Packaging Machinery or the latest "top of the line" Packaging Equipment then we have some of the best high quality North American Made machines available. This website has only some of our machines listed and we have much more! Anytime you need Skin Packaging Equipment, we have the machines for your application, please contact us
We look forward to working with you on your project and being your packaging machinery supplier for many years to come.
