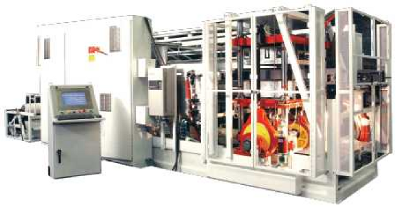

High-Speed Servo-Drive Thermoforming System

These High-Speed Servo-Drive Thermoforming Systems feature all the latest technology, Servo-Drives, Advanced Controls, Multi-Zone Pre-heating, Servo-Controlled Top and Bottom Platens, High-Pressure Sealing, Heavy Tonnage Punch-Press for "Super-Fast" Cycle Times! These thermoforming systems have every option available to custom design a machine for your high-speed thermoforming requirement.

This High-Speed Servo-Drive Thermoformer has a built in Punch-Press Trim and are designed for applications that require high volume production and precision punch type trimming of parts such as plates, bowls, trays, lids, cups, etc. The "State of the art" servo-motor technology provides continuous forward motion control for forming platens, trim platens and film index. These thermoforming systems feature a precision die-cutting press that uses punch and die type tooling. Extremely fast cycle speeds, exceeding 50ppm are achievable. These servo driven pressure formers use roll-fed thermoplastic that is indexed via a servo-driven pin chain through a multiple zone pre heating station into the forming station where servo-driven top and bottom moving platens (with form tools attached) close and pressure form the part after which the formed sheet web is indexed and re-registered as it enters the servo-driven horizontal punching station where parts are punched out of the web and automatically stacked while The scrap web is rewound or fed into a grinder.

This video demonstrates various thermoforming machine applications which include the following examples: The Heavy Gage Thermoforming Machine producing trays from thick sheets of thermoplastic. A close-up of the General Purpose Thermoforming Machine with vacuum forming option. A High-Speed Inline Pressure Thermoforming Machine producing large format plastic sink inserts. This machine is operating at very high efficiencies and creating a product that could not be produced by most other machines available on the market. All of these machines made in America and feature heavy-duty construction and state of the art controls.

If you need more information or pricing on a Thermoformer, please contact us

High-Speed Servo-Drive Pressure Thermoforming Machine with Punch-Press Trim Features:

• Cool Blow System: after parts are formed, a unique cool air cycle circulates through the pressure box to assist the water cooled tools in cooling the formed parts, reducing the cycle time.
• Platen Lock System: system compresses the o-ring seal to compensate for any variation in tool height. No shims or set up adjustments are required to seal tools with minor variances in height. Touch Screen Control: user friendly touch screen simplifies equipment set-up and operation.
• Digital photographic troubleshooting directs the operator to exact location of machine fault and describes corrective action necessary.
• Double Wide Pin Chain: American-made double wide chain incorporates two rollers; reducing friction and eliminating wear. The chain design has been in service decades without replacing a chain or track in the field.
• Retractable Heaters: top and bottom heaters retract out of the plastic area during shut-down. Energy saving feature also reduces cleanup if sheet is overheated.
• Full-Length Platens: form and trim presses are full size, supporting tooling. Platens are solid steel running the full length and width, reducing shut height and tooling costs.
• 50+ Cycles per Minute: servo-driven CAM-activated platens provide continuous forward motion resulting in increased cycling speeds.
• High Form Pressure: exclusive press locking system is capable of holding form air pressure in the box without leaking.
• Four Post Precision Presses: large diameter precision press bearings and solid steel platens in both the form and trim stations.

For information on other types of Thermoforming Machines use this link:
Thermoformers

Why you should contact Packaging Equipment Sales for your Thermoforming Equipment: We have the Thermoforming Machine for your application. We know what information is needed to properly select the correct technology and what features you will need to meet your requirements. We can give budgetary numbers for your project almost instantaneously. If you need a formal proposal, you will not get it any faster than we will be able to provide it.
