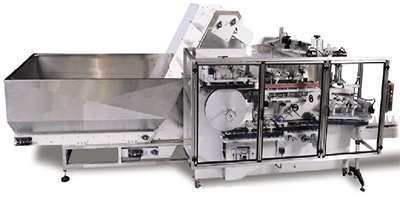

Heavy-Duty Bottle Unscrambler for large plastic bottles of every shape that are up to 8.5 inches in diameter and 13 inches in height at speeds to 625 bottles per minute (depending on size of the bottle). This Heavy-Duty unscrambling system is specifically designed to unscramble gallon jugs with handles as well as 5 quart capacity motor oil bottles and other large plastic bottles of almost any shape.
We carry a full line of Plastic Bottle Unscrambling Equipment including this Heavy-Duty Bottle Unscrambler for large plastic bottles, High-Speed Bottle Unscrambling Machines and Compact or Small Footprint Plastic Bottle Unscramblers to meet your exact requirements.
Plastic Bottle Unscrambler Features:
Watch this Video of Bottle Unscrambling Applications:
The Video Shows the Following: A Compact Bottle Unscrambler being loaded with HDPE pharmaceutical bottles (note- the integrated hopper for easy loading from a box). A High-Speed Bottle Unscrambler and a Heavy-Duty Large Bottle Unscrambler. Also shown in this video are the elevator for loading the soring bowl in high-speed applications, the easy change-over process, the optional bottle counter and bottle rinser as well as the upgraded HMI controls.
How a Plastic Bottle Unscrambler Works: The bottle unscrambler hopper is loaded with bottles. When the plastic bottle unscrambler is turned on the hopper elevator begins loading the sorting bowl. The unscrambler's sorting bowl begins spinning and the centrifugal force and sweep arm force the bottles into the track at the outer edge of the sorting bowl. The plastic bottles now lying flat in the track and are either neck leading or base leading as they exit the unscrambler sorting bowl. The unscrambler orientating wheel grabs the bottles and places them into the pacing belts to achieve proper separation before being "picked". The picking device has a hook on the end and all of the bottles that are neck leading are "picked" and flipped so that all bottles are now base leading. The plastic bottle unscrambler stand-up belt transports the bottles through the stand-up ramp area where the base of the bottle strikes the ramp and the bottle stands up. The now standing upright bottles move to the discharge belt were they are running synchronous with the production conveyor. The standing bottles are released by the discharge belt onto the production conveyor and move to the next packaging operation.
If you need information or pricing for a Heavy-Duty Plastic Bottle Unscrambler, contact us
Heavy-Duty Plastic Bottle Unscrambler Options:
For information on other types of Plastic Bottle Unscramblers use this link:
Unscramblers
Why you should contact Packaging Equipment Sales for your Plastic Bottle Unscrambling Equipment. We have the Plastic Bottle Unscrambler for your application. We know what information is needed to properly select the correct technology and what features you will need to meet your requirements. We can give budgetary numbers for your project almost instantaneously. If you need a formal proposal, you will not get it any faster than we will be able to provide it.
One call to Packaging Equipment Sales will save you time and money, contact us
