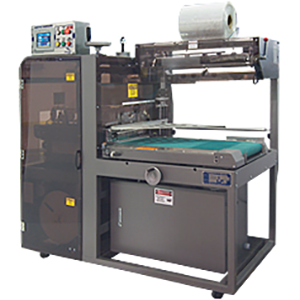

Compact L-Bar Shrink Wrap Machine for a high quality totally enclosed shrink package for retail display. This compact shrink wrap machine is perfect for contract packaging and other operations where a small footprint, quick product changeovers for high productivity are necessary. This Compact L-Bar shrink wrap machine is for industrial shrink wrap packaging applications.
Compact L-Bar Shrink Wrap Machine Specifications:
Maximum packaging speed: 40 PPM
Variable conveyor speed: 45-90 FPM
Product width: Min. 1 1/2" Max. 15"
Product length: Min. 4" Max. 18 1/2"
Product height: Min. 1/4" Max. 6"
Product weight: Max. 25 lbs.
Film types: LDPE, Polyolefin, PVC, 50 ga-1.5 mil
Film roll width: Max. 24" or 30" (center-folded)
Film roll diameter: Max. 12"
Machine height: 63"
Machine length: 65"
Machine width: 40
Power requirement: 220VAC, 60Hz., 1-ph, 15A
Compressed air requirement: 80 PSI, up to 5 SCFM
Watch this video of Compact L-Bar Shrink Wrap Machine applications:
The video shows the following: The Compact L-Bar Shrink Wrap Machine shrink wrapping cartons of food products with a totally enclosed package for display in a retail freezer case. Other products being shrink wrapped in this video include a 3 pack shrink wrapped bundle of personal care items, individual bakery items such as pies and pizza, shrink wrapped gift baskets of food and snacks, trays of various nuts for retail sales and other boxed items. The video shows close-up footage of the film dispensing, L-bar sealing and shrink tunnel of the Compact L-Bar Shrink Wrap Machine.
If you need more information or pricing on a Compact L-Bar Shrink Wrap Machine, contact us
Compact L-Bar Shrink Wrap Machine Features:
This Compact L-Bar Shrink Wrap Machine has a Compact Heavy Duty Construction Welded tubular frame, linear shafts and factory sealed bearings offer dependable operation in the most demanding production environments. Adjustable height legs 32 1/2" conveyor height adjustable to 36 1/2". Safety guards with safety door interlock and strong polycarbonate doors for product visibility and safety.
Allen-Bradley® Micrologix PLC AC frequency motor control, circuit breaker protection (no fuses) and solid state heater relays ensure optimum machine performance. Variable Speed Conveyors with Soft Start Control. The latest in AC motor control technology
Easy Load Film Cradle handles 24" or 30" wide center-folded film rolls depending on the compact shrink wrap machine model. Film threading from the front allows placement of machine against wall or in-line with conveyor system. There is also automatic film feed to speed up film loading
Unique Trim Takeaway No more film tail breaks! Timing belts do not pull, but gently assist the excess material to the rewind system
Worry-free Rewind System Independent motor and closed-loop operation accommodates the lightest film gauges and reduces your film thickness requirement
Standard Needle Perforations allow positive air evacuation during shrink process for the most uniform retail package produced by any High-Speed L Bar Shrink Wrap Machine
Quick Product Changeover with "Seal Height Calibration Sequence" and simple hand crank adjustments to marked scale positions that offer maximum flexibility with product changeovers in just minutes!
Optional Conveyor Infeeds are available including belted or lugged conveyors.
For information on other types of Shrink Wrap Machines use this link: Shrink Wrap Machines
Why you should contact Packaging Equipment Sales for your Shrink Wrap Machine: We have the Shrink Wrap Machine for your application. We know what information is needed to properly select the correct technology and what features you will need to meet your requirements. We can give budgetary numbers for your project almost instantaneously. If you need a formal proposal, you will not get it any faster than we will be able to provide it.
One call to Packaging Equipment Sales will save you time and money, contact us
